Wire Mesh Welding Machines

HKM MC - Wire Mesh Welding Machine
Coil-Fed System for Reinforced Mesh Panels

Designed for the production of rolled mesh using longitudinal wires fed from coils and pre-cut cross wires, this machine provides high-efficiency manufacturing with a robust and compact mechanical structure, superior welding quality, and a user-friendly interface. Its fully automatic operation ensures continuous and reliable production with minimal operator intervention.

Wire Mesh Welding Machine Coil-Fed and Panel Mesh System - HKM MC

Wire Mesh Welding Machine Coil-Fed and Panel Mesh System - HKM MC

Minimum

white wall with black shadow

white wall with black shadow

A
B
C
D
E
F
G

1000mm
2500mm
-
100mm
50mm
Ø4mm
Ø4mm

2500mm
6000mm
2400mm
240mm
250mm
Ø7mm
Ø7mm

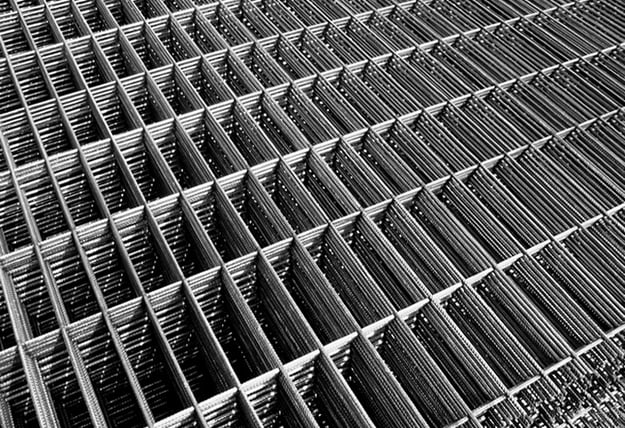

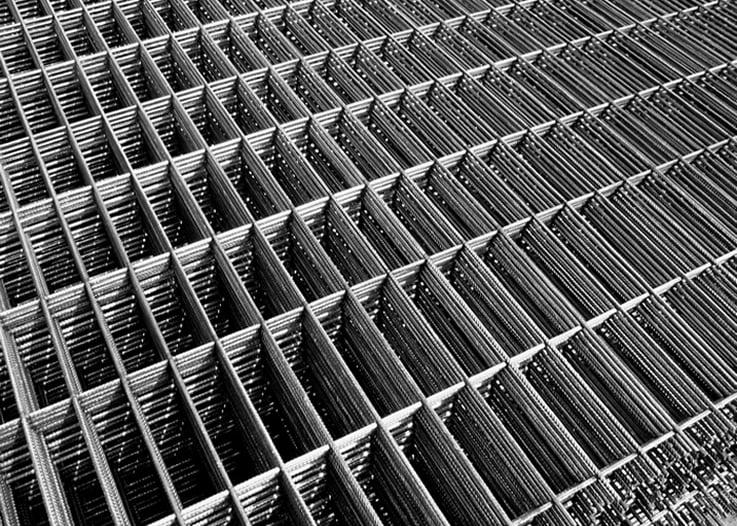

A sample mesh panel produced using Neulogs wire mesh welding machines - Neulogs HKM MC–

A sample mesh panel produced using Neulogs wire mesh welding machines - Neulogs HKM MC–

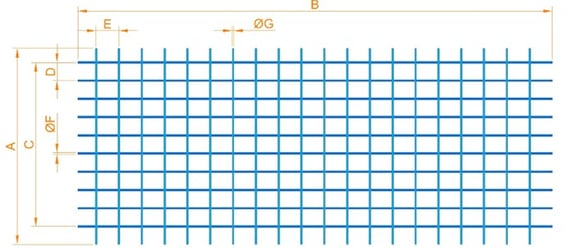

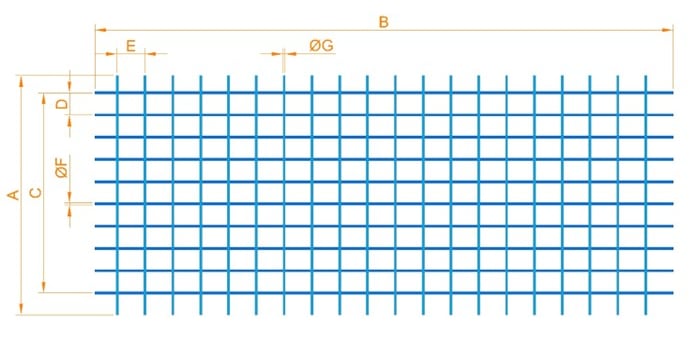

mesh welding machines- Mesh Panel Dimensions

mesh welding machines- Mesh Panel Dimensions

Technical Specifications

Maximum

Mesh Width (Cross Wire Length)
Mesh Length (Line Wire Length)
Maximum Wire Spacing
Line Wire Spacing
Cross Wire Spacing
Line Wire Diameter Range
Cross Wire Diameter Range

A
B
C
D
E
F
G

Contact our expert team now for price quotations, technical details, or production solutions related to our reinforcement wire mesh welding machines.

Durable and long-lasting steel mesh panels produced with spot welding technology using ribbed wires.

Durable and long-lasting steel mesh panels produced with spot welding technology using ribbed wires.
