HKM MCRS - Wire Mesh Welding Machine
Coil-Fed System for Rolled Mesh Production

Designed for the production of rolled mesh using longitudinal wires fed from coils and pre-cut cross wires, this machine provides high-efficiency manufacturing with a robust and compact mechanical structure, superior welding quality, and a user friendly interface. Its fully automatic operation ensures continuous and reliable production with minimal operator intervention.

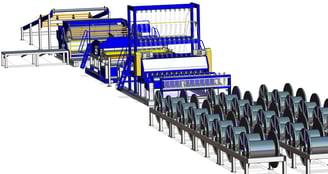

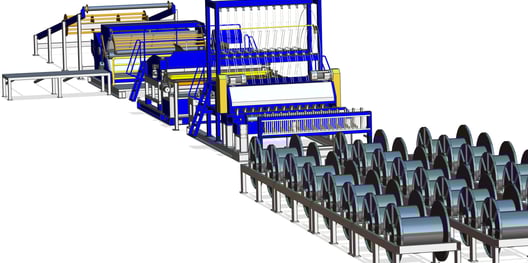

Wire Mesh Welding Machine Coil-Fed and Rolled Mesh System

Wire Mesh Welding Machine Coil-Fed and Rolled Mesh System

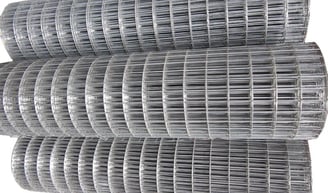

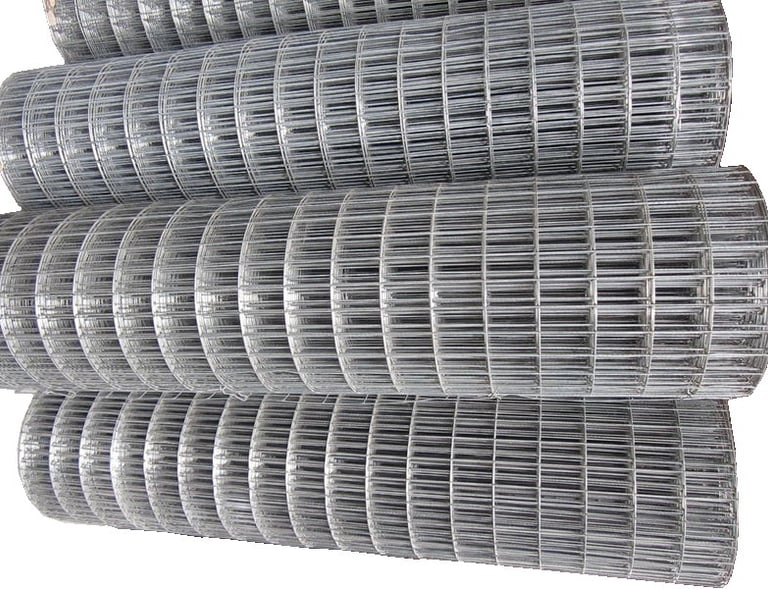

A sample rolled wire mesh produced using Neulogs wire mesh welding machines - Neulogs HKM MCRS–

A sample rolled wire mesh produced using Neulogs wire mesh welding machines - Neulogs HKM MCRS–

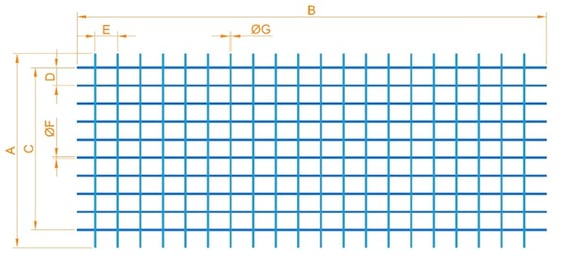

mesh welding machines- Mesh Panel Dimensions

mesh welding machines- Mesh Panel Dimensions

Maximum

white wall with black shadow

white wall with black shadow

1000mm
-
-
100mm
50mm
Ø3mm
Ø3mm
-

2500mm
40m
2400mm
240mm
250mm
Ø6mm
Ø6mm
Ø850mm

Technical Specifications

Minimum

A
B
C
D
E
F
G

Mesh Width (Cross Wire Length)
Mesh Length (Line Wire Length)
Maximum Wire Spacing
Line Wire Spacing
Cross Wire Spacing
Line Wire Diameter Range
Cross Wire Diameter Range
Finished Mesh Roll Diameter

A
B
C
D
E
F
G

Contact our expert team now for price quotations, technical details, or production solutions related to our reinforcement wire mesh welding machines.

Durable and long-lasting steel mesh panels produced with spot welding technology using ribbed wires.
